Product Introduction
AC motors are widely used in industrial automation systems due to their rugged structure and excellent performance. The motors are brushless and slip ring-free, which means longer service life and low maintenance costs. Our AC motors can operate continuously under heavy loads and high temperature environments, making them particularly suitable for automated production lines and large robotic systems.
Application Scenario

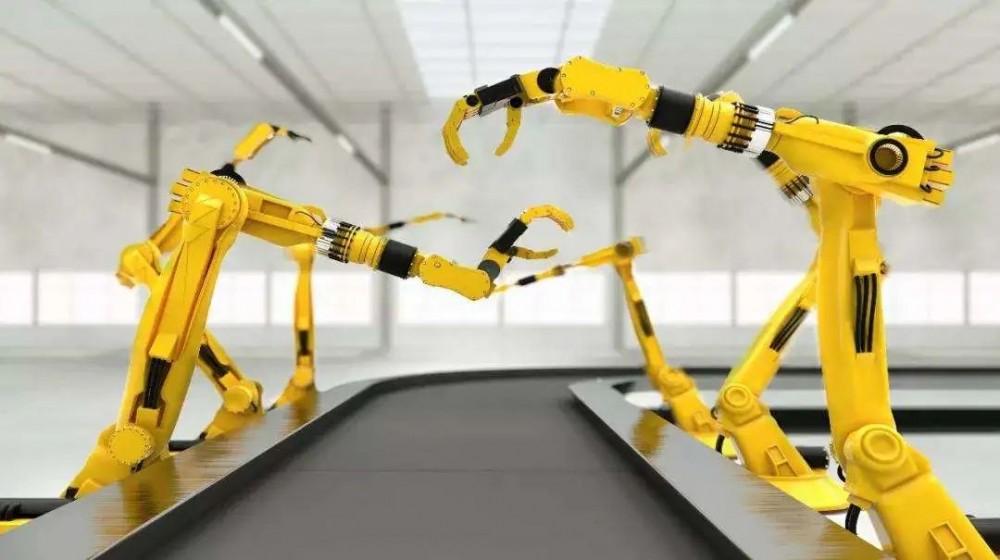

Industrial robots: AC motors are commonly used in industrial robot joints and drive systems to provide stable power output and adapt to high-load operations.
Large mobile platforms: In heavy transport platforms or automated vehicles, AC motors provide strong driving force and continuous energy output.
Six quality assurances
Product parameters (specifications)
model | Voltage (V) | Rated speed (RPM) | No-load current (A) | Peak Torque (Nm) | Peak speed (RPM) | Load current (A) | Rated Power (KW) | efficiency (%) |
TEC -3kw | 48 | 3000 | 35 - 45 | 45 - 50 | 5000 | 120 | 3 | 78 |
| 48 | 2250 | 35 - 45 | 50 - 65 | 6250 | 113 | 3 | 78 |
| 24 | 3000 | 35 - 45 | 65 - 75 | 4500 | 142 | 3.5 | 83 |
TEC-5kw | 48/60 | 3000 | 35 - 45 | 70 - 90 | 4500 | 120 | 5 | 86 |
| 48/60 | 3000 | 35 - 45 | 65 - 85 | 4500 | 113 | 4 | 84 |
TEC-10KW | 72 | 3000 | 45 - 50 | 130 - 160 | 6500 | 120 | 10 | 88 |
| 72 | 3000 | 45 - 50 | 120 - 140 | 6500 | 113 | 7.5 | 88 |
FAQ
Regularly maintaining the motor's cooling system, ensuring a good working environment, and avoiding overload operation can effectively extend its service life.
It is suitable for automated assembly lines, packaging equipment and heavy-load mobile transportation systems, and performs particularly well under high loads and harsh working environments.
When used with a frequency converter, AC motors can start and stop smoothly while saving energy, making them particularly suitable for industrial robots that operate for long periods of time.
