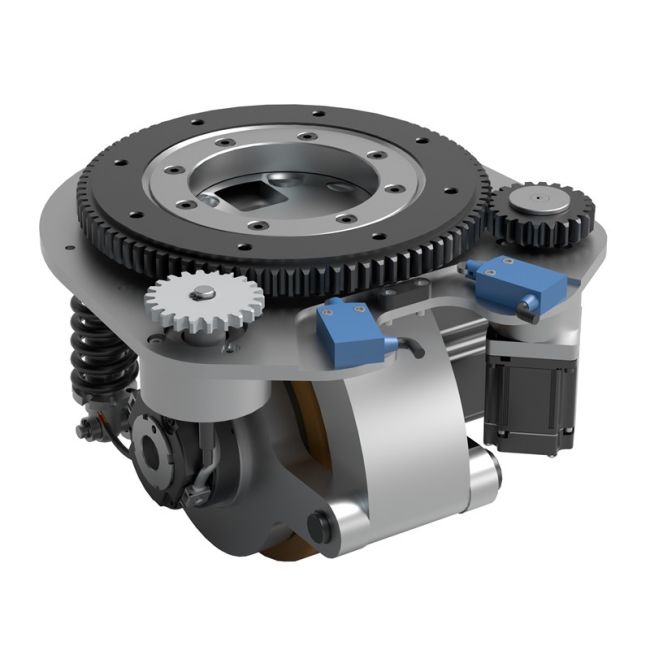

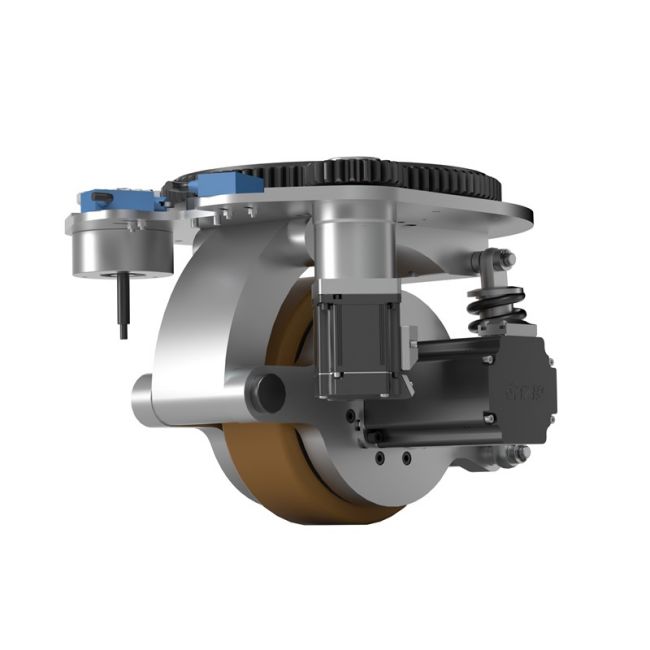

Our TEC horizontal vibration-reducing drive wheel is designed for harsh industrial environments. It has an integrated spring shock-absorbing system that can effectively buffer vibration and impact. It is an ideal drive solution for high-load and high-vibration scenarios (such as mining machinery and heavy-duty AGVs in ports).
Product Introduction

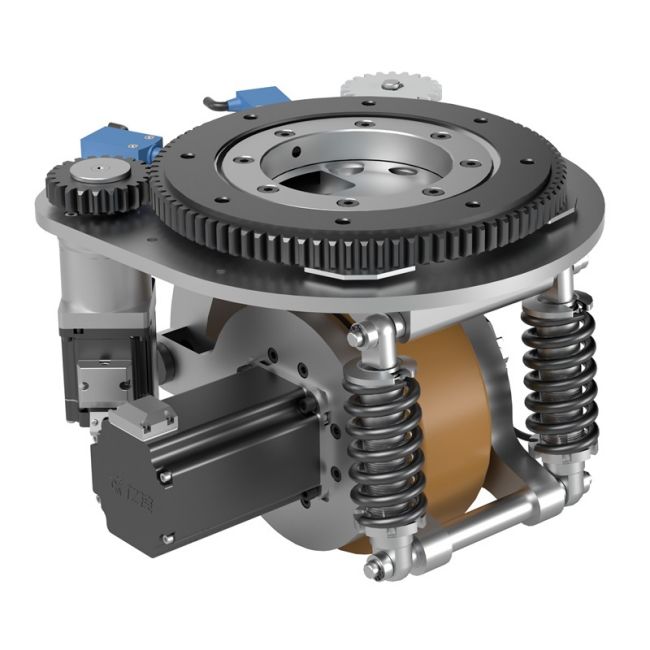

Based on the horizontal drive wheel, the horizontal shock-absorbing steering wheel achieves higher load-bearing capacity and stability by integrating the spring shock-absorbing system. The spring shock-absorbing system effectively absorbs vibration, reduces operating impact, protects mechanical parts, and prolongs the service life of the equipment.
1. Optional parallel shaft gears and planetary reducers, compact structure, low noise, and large output torque;
2. Horizontal drive wheel series (named by wheel diameter mm): 150, 167, 198, 220, 250 full range application coverage;
3. Horizontal drive wheel load range: 500kg-1600kg series;
4. 12V-96V input voltage range, horizontal with steering/without steering;
5. Optional polyurethane wheel or rubber wheel structure;
6. Optional DC brush, AC asynchronous, permanent magnet servo motor, power range 400W-15KW;
7. Optional components: shock-absorbing spring, limit switch, original switch, incremental/absolute encoder, potentiometer and other components.
Production details
High-quality shock-absorbing spring, durable and high-strength
Limit switch to ensure safe operation
High-strength alloy material to improve load-bearing capacity
Six quality assurances
Product Specifications
series | Motor Type | power(W) | Voltage(V) | Current(A) | Speed(RPM) | Reduction ratio(I) | Loading(kg) | IP Rating | |
TEC-150P | Straight Motor | Servo | 750 | 48 | 18 | 3000 | 21 | 500 | 65 |
Steering motor | Servo | 200 | 48 | 6 | 3000 | 50 | 65 | ||
TEC-167P | Straight Motor | Servo | 1000 | 48 | 27 | 3000 | 32 | 600 | 65 |
Steering motor | Servo | 200 | 48 | 6.4 | 3000 | 285 | 65 | ||
TEC-198P | Straight Motor | Servo/AC/DC | 1500 | 48 | 40 | 3000 | 32 | 1000 | 20-65 |
Steering motor | Servo/AC/DC | 400 | 48 | 9.9 | 3000 | 50 | 20-65 | ||
TEC-220P | Straight Motor | Servo | 1500 | 48 | 27 | 3000 | 40 | 1000 | 65 |
Steering motor | Servo | 400 | 48 | 11.5 | 3000 | 200 | 65 | ||
TEC-250P | Straight Motor | Servo/AC/DC | 1500 | 48 | 35 | 3000 | 40 | 1600 | 20-65 |
Steering motor | Servo/AC/DC | 400 | 48 | 9.9 | 3000 | 50 | 20-65 |
FAQ
Check the integrity of the wheels and shock absorber system regularly, keep them clean and ensure lubrication to ensure optimal performance
Different models have different load capacities, please consult technical support for details.
This system uses specific materials and structural design to effectively absorb ground vibrations and shocks to ensure the safety of transported goods.
