Our TEC differential drive wheel are ideal for use in tight spaces and harsh industrial environments. With over 22 years of production and R&D experience, we provide reliable customized AGV solutions.
Product Introduction

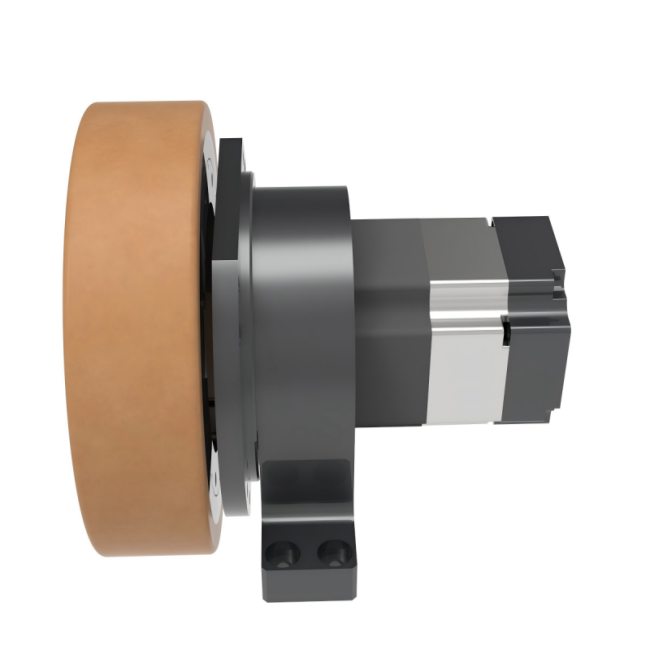

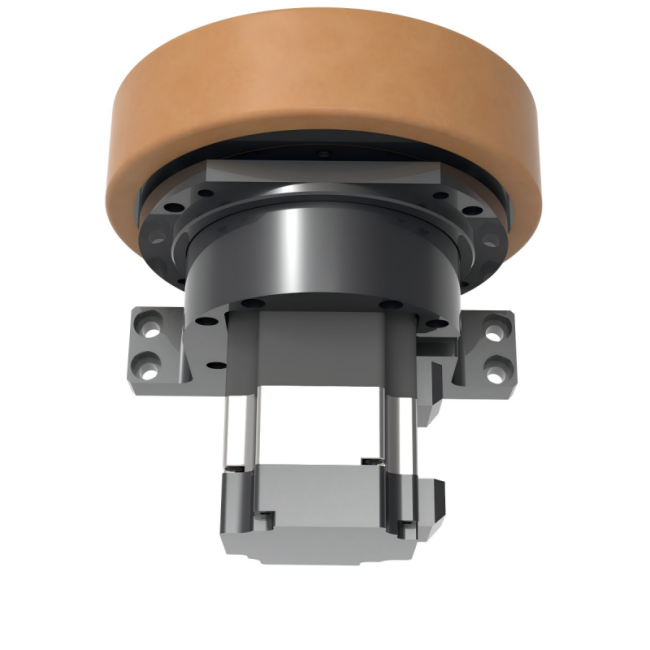

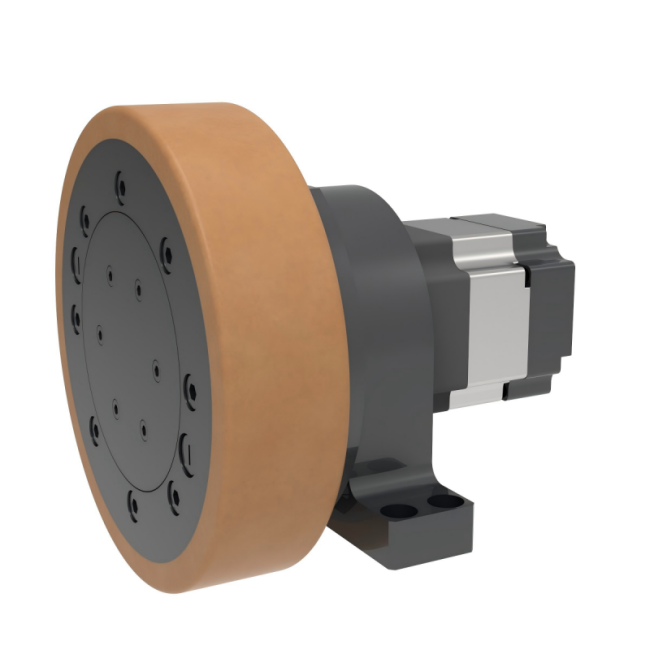

Our differential wheels adopt advanced design to achieve flexible steering and precise control, which is very suitable for complex industrial environments. The drive wheel effectively improves maneuverability through the differential mechanism, allowing the equipment to operate efficiently in a narrow space.
1. Planetary reducer transmission structure, compact structure, low noise, and large output torque;
2. Differential wheel series (named by wheel diameter mm): 120, 150, 180, 200, 220, 240, 250 series application coverage.
3. Differential wheel load range: 150kg-2500kg series;
4. 12V-96V input voltage range;
5. Optional polyurethane wheel or rubber wheel structure;
6. Optional DC brush, AC asynchronous, permanent magnet servo motor, power range 100W-3KW;
7. Optional parts: shock absorber spring, incremental/absolute encoder, brake and other components.
8. Custom series: explosion-proof motor, low temperature motor, high IP protection level.
Application Scenario
1. Logistics and warehousing: Enhance the maneuverability of automated guided vehicles (AGVs) in narrow aisles.
2. Manufacturing: Supporting industrial robots that need to perform precise movements in complex assembly lines.
3. Healthcare: Facilitates the movement of medical equipment in the confined space of the hospital.
Six quality assurances
Product Specifications
Product Model | Rated Power (W) | Rated voltage (V) | Rated current (A) | Rated speed (rpm) | Rated torque (Nm) | IP protection rating | Driving wheel load (kg) | Total weight of driving wheels (kg) | Gear Ratio（I） | Rated output torque (Nm) | Maximum acceleration and braking torque (Nm) |
TEC-120 | 400 | 48 | 11.2 | 3000 | 1.28 | IP65 | 150 | 5±2 | 9，20 | 10，21 | 20，42 |
TEC-150 | 400 | 24 | 22 | 3000 | 1.28 | IP54 | 450 | 12±2 | 15 | 16 | 40 |
TEC-180 | 750 | 48 | 19.6 | 3000 | 2.39 | IP65 | 600 | 18±2 | 15 | 30 | 80 |
TEC-200 | 750 | 48 | 19.6 | 3000 | 2.39 | IP65 | 600 | 18±2 | 15 | 30 | 80 |
TEC-220 | 1500 | 48 | 45 | 3000 | 4.78 | IP65 | 1400 | 37±5 | 15，30 | 61, 121 | 122, 242 |
TEC-240 | 1500 | 48 | 45 | 3000 | 4.78 | IP65 | 1400 | 38±5 | 15，30 | 60, 121 | 122, 242 |
TEC-250 | 1500 | 48 | 45 | 3000 | 4.78 | IP65 | 1400 | 37±5 | 15, 30 | 60, 121 | 122, 242 |
FAQ
The differential drive wheels allow flexible steering in a narrow space, enhance the maneuverability of the equipment, and ensure stability under heavy loads, making it suitable for complex industrial environments.
Differential drive wheels are widely used in automated guided vehicles (AGVs), logistics equipment, and industrial robots, where high maneuverability and flexible steering are required.
