Product Introduction

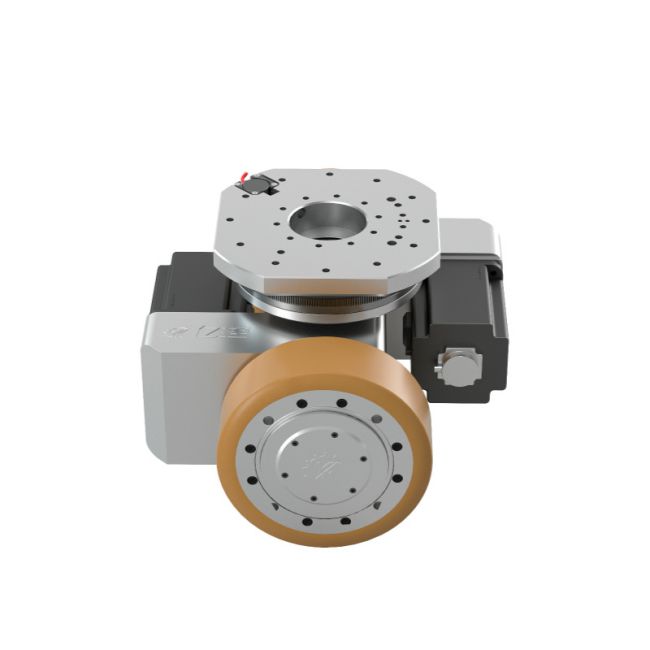

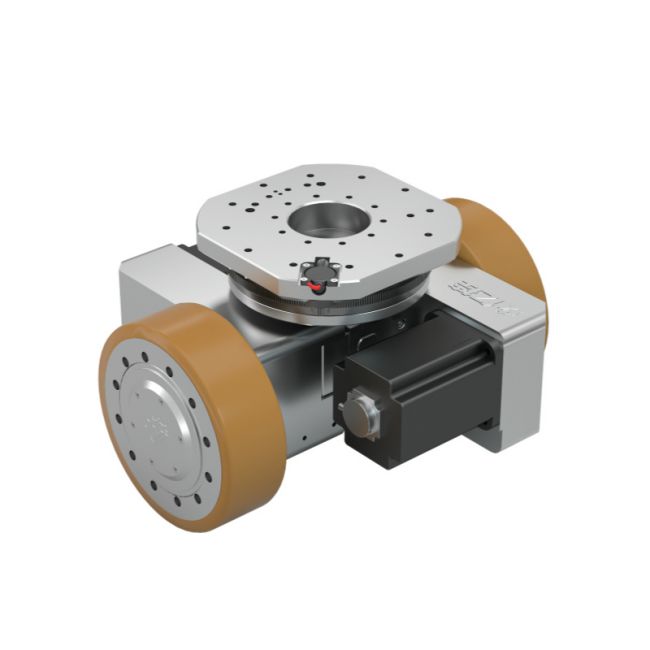

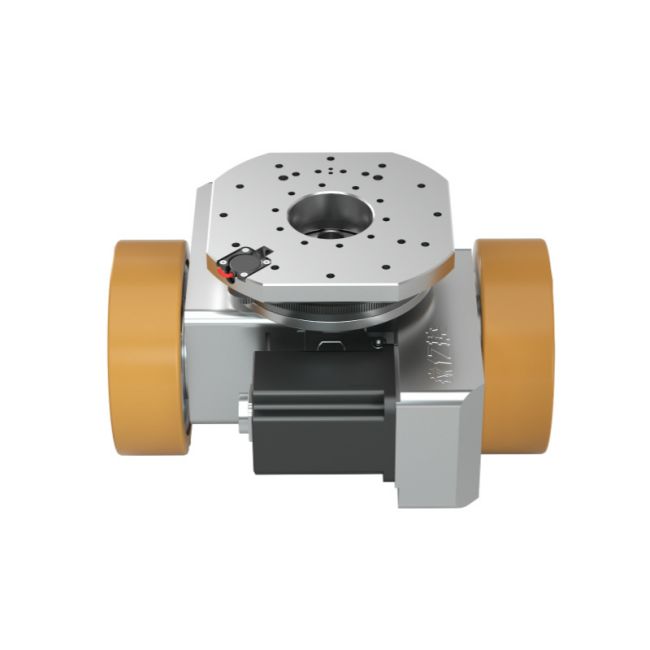

The differential wheel set consists of two or more differential wheels, with excellent load capacity, stability and flexibility, and is particularly suitable for heavy-duty AGVs, unmanned forklifts, industrial automation equipment and other scenarios. Its core advantage lies in the differential drive mechanism, which can achieve precise steering and efficient power output, and can maintain stable operation even in confined spaces or complex terrain.
1. Double wheel structure, large load, small turning radius, low height, and large output torque;
2. Differential wheel series (named after wheel diameter mm): 85, 105, 240, 280, 400, 500, 550 series application coverage.
3. Differential wheel set load range: 500kg-23000kg series;
4. 12V-96V input voltage range;
5. Optional polyurethane wheel or rubber wheel structure;
6. Matching servo motor, power range 100W-6KW;
7. Optional components: shock absorber spring, incremental/absolute encoder, brake and other components.
8. Customized series: explosion-proof motor, low-temperature motor, high IP protection level.
Production details
1. High quality alloy material, stronger load-bearing capacity.
2. Equipped with polyurethane wheels, the equipment is more durable.
3. Dual motors are independently controlled to enhance flexibility.
Six quality assurances
Product Specifications
series | Rated Power（S2）[W] | Rated voltage [V (DC)] | Rated current [A] | Rated speed [Rpm] | Rated torque [Nm] | IP protection rating | Wheel diameter [mm] | Rated load [kg] |
TEC-85 | 200 | 48 | 5.3 | 3000 | 0.64 | 54 | 85 | 500 |
TEC-105 | 400 | 48 | 20 | 3000 | 1.27 | 65 | 105 | 800 |
TEC-120 | 400 | 48 | 24 | 3000 | 1.27 | 54 | 120 | 650 |
TEC-240 | 750 | 48 | 19.6 | 3000 | 2.4 | 65 | 240 | 2000 |
TEC-280 | 2000 | 48 | 48 | 3000 | 6.4 | 54 | 280 | 3200 |
TEC-400 | 2500 | 48 | 61 | 3000 | 7.96 | 54 | 400 | 10000 |
TEC-450 | 4300 | 72 | 70 | 1500 | 27 | 54 | 450 | 12000 |
TEC-500 | 5500 | 48 | 135 | 1500 | 35 | 54 | 550 | 20000 |
TEC-550 | 5500 | 48 | 135 | 1500 | 35 | 54 | 550 | 23000 |
FAQ
Differential drive wheels provide increased load capacity and stability, particularly suitable for long-term operation of large equipment. They ensure smooth operation under heavy loads or difficult terrain while improving overall maneuverability.
When selecting a differential drive wheelset, load requirements, specific application environment and operating conditions should be considered. We recommend consulting our technical support for customized recommendations.
Differential drive wheels are widely used in heavy transport equipment, large industrial robots and high-precision cargo transportation, which require strong driving force and high stability.
