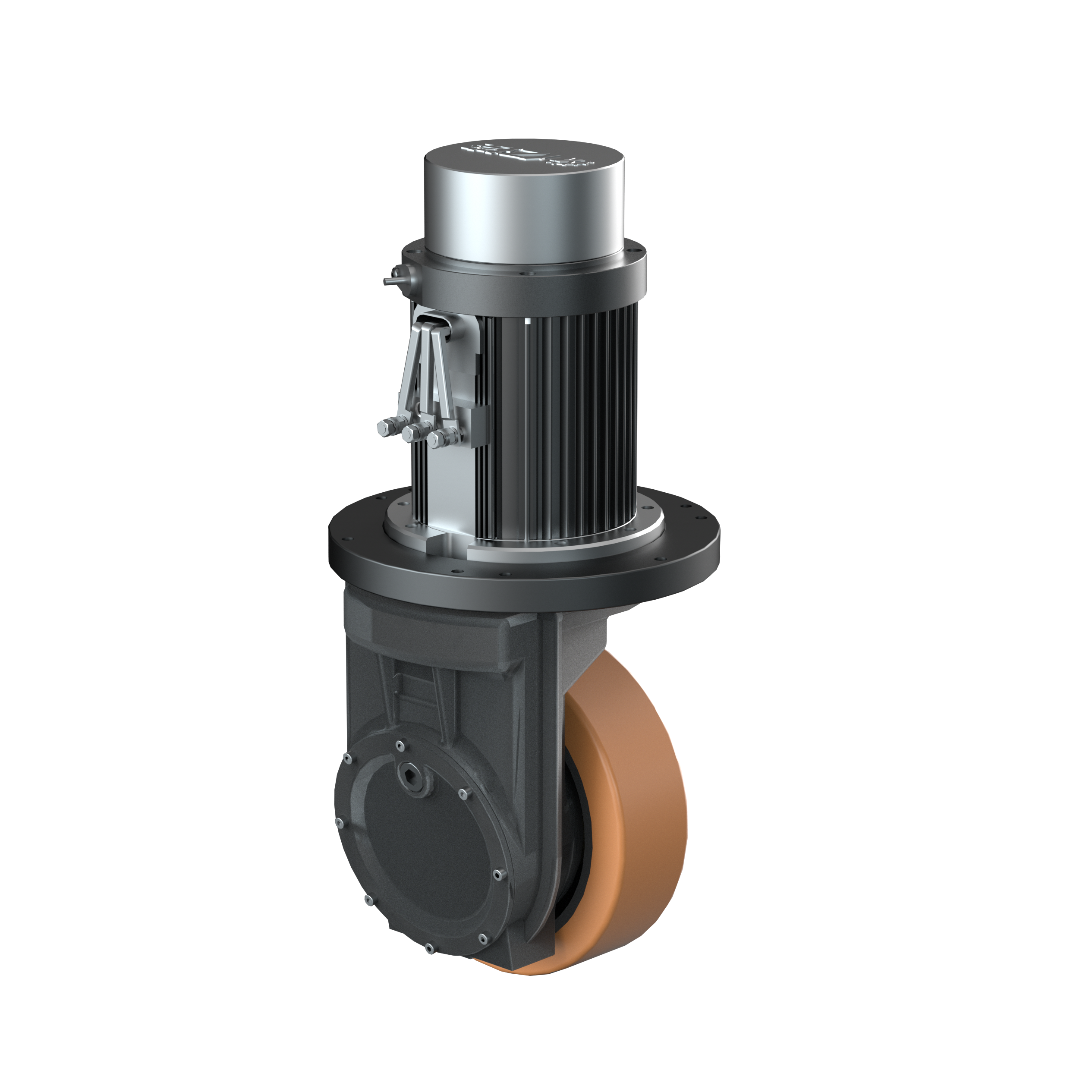

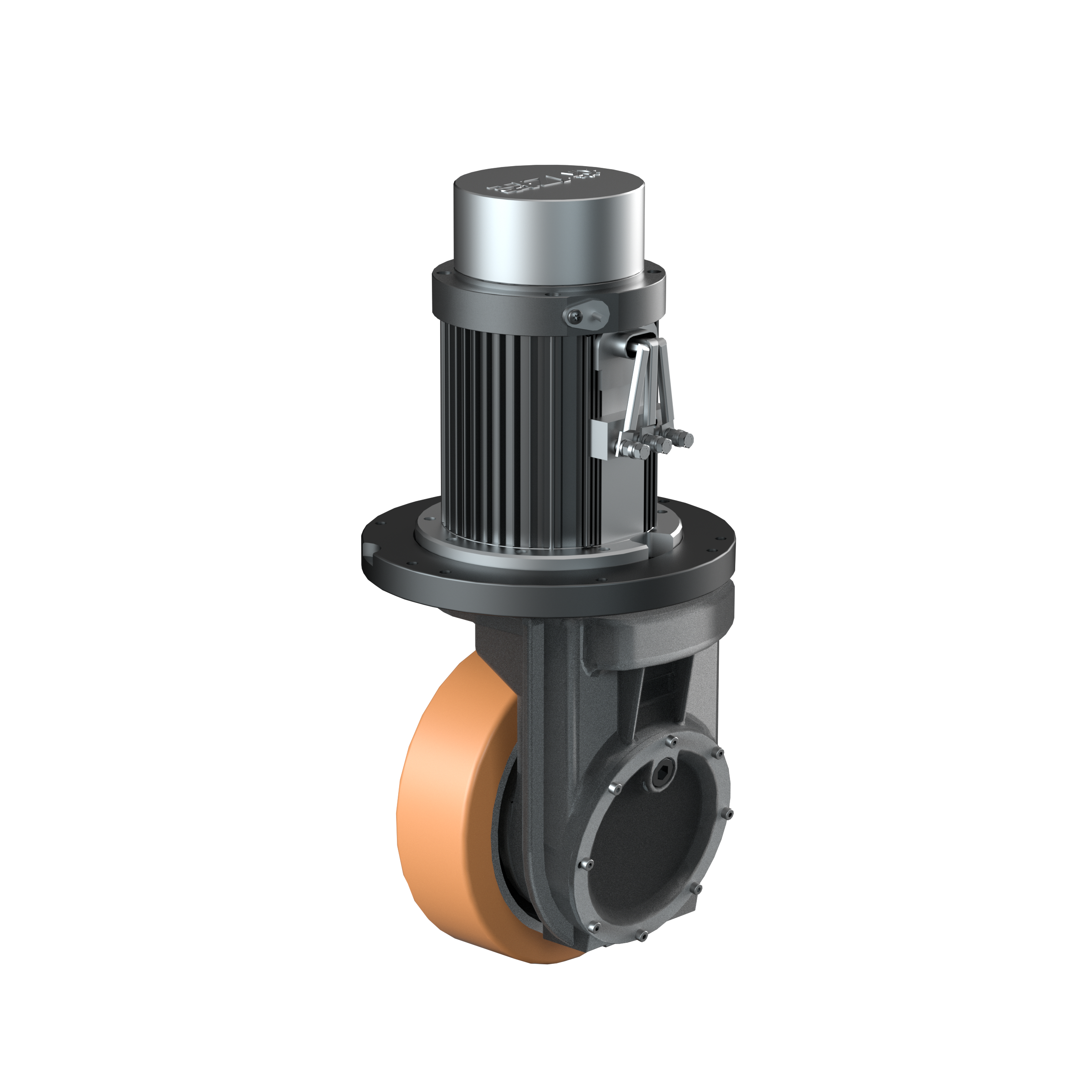

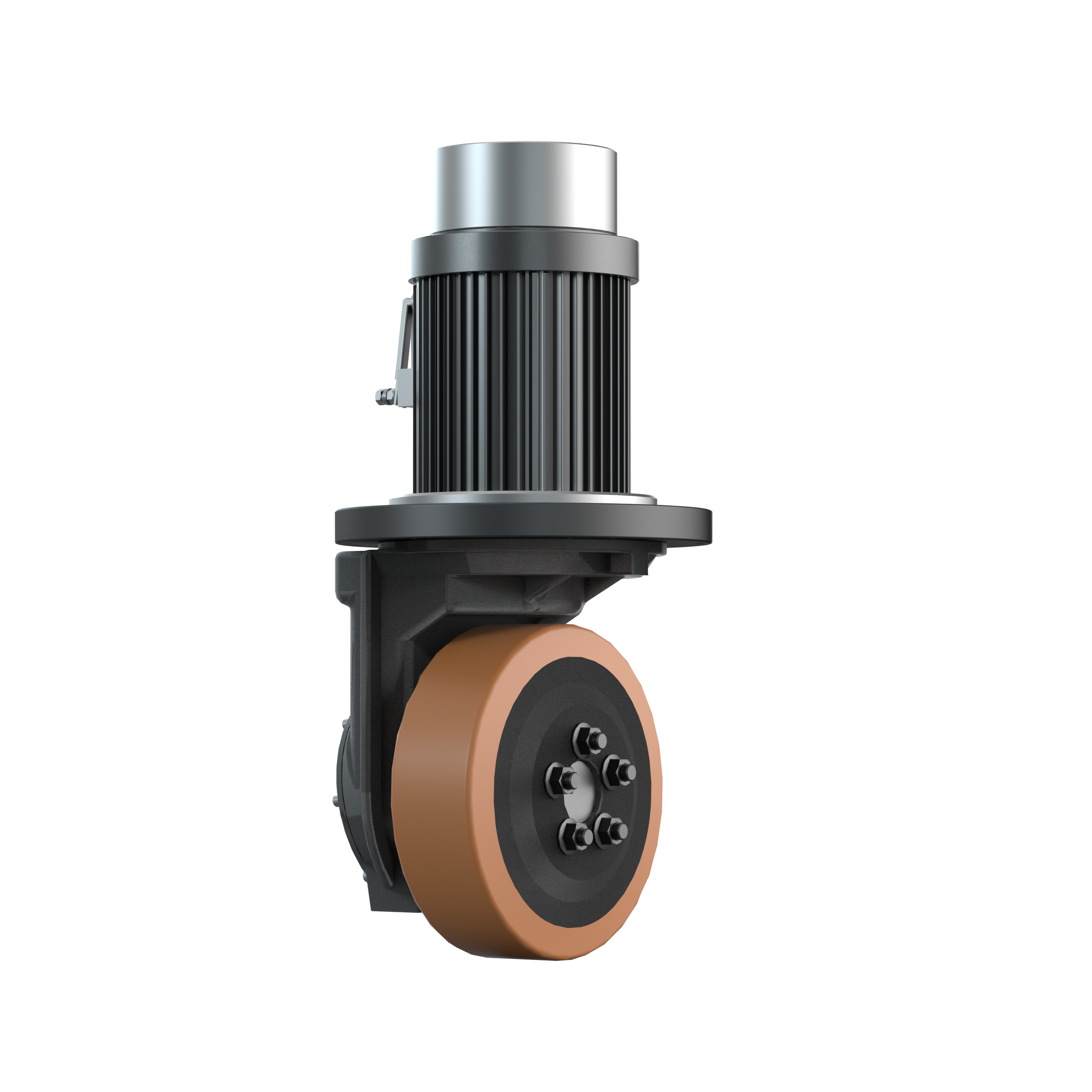

TEC vertical drive wheel without steering function and focuses on precise movement in the front and rear directions. It does not have a steering function, but it performs well in terms of load capacity and stability, and is especially suitable for harsh industrial environments.
Product Introduction
The vertical steering wheel without steering focuses on precise movement in the front and rear directions. It adopts high-performance materials and advanced manufacturing processes to ensure stability and durability under long-term use.
1. Bevel gear transmission structure, compact structure, low noise, and large output torque;
2. Vertical drive wheel series (named by wheel diameter mm): 150, 230, 250, 310, 343, 406, 457, 470 series application coverage.
3. Vertical drive wheel load range: 1500kg-6500kg series;
4. 12V-96V input voltage range, this steering wheel does not have steering function;
5. Optional polyurethane wheel or rubber wheel structure;
6. Optional DC brush, AC asynchronous, permanent magnet servo motor, power range 400W-16KW;
7. Optional components: shock absorbing spring, limit switch, original switch, incremental/absolute encoder, potentiometer and other components.
8. Customized series: explosion-proof drive wheel, low temperature drive wheel, high IP protection grade.
Product Details
· High-strength polyurethane wheels with large load capacity.
· High performance motor, safe and reliable.
Rigid structure, more durable.
Six quality assurances
Product Specifications
| series | Rated voltage（V） | Electric Motor（W） | Rated current（A） | speed（RPM） | Rated torque（NM） | Reduction ratio（I） | Output torque（NM） | Maximum Torque（NM） | Maximum load（kg） |
| TEC -230 | 24 | 1500 | 76 | 2590 | 5.5 | 30 | 108 | 300 | 1500 |
| 24 | 1500 | 76.2 | 3200 | 4.5 | 30 | 108 | 300 | 1500 | |
| 24 | 1500 | 76.2 | 3200 | 4.5 | 30 | 108 | 300 | 1500 | |
| 48 | 1500 | 34 | 2500 | 5.73 | 30 | 103 | 365 | 1500 | |
| TEC -250 | 24 | 1600 | 100 | 2400 | 6.4 | 19 | 103 | 260 | 1800 |
| 24 | 1600 | 100 | 2400 | 6.4 | 19 | 98.6 | 260 | 1800 | |
| 48 | 1600 | 35 | 2500 | 6.11 | 19 | 163 | 246 | 1800 | |
| 48 | 2500 | 63 | 2500 | 9.55 | 19 | 145 | 450 | 1800 | |
| TEC -310 | 24 | 3000 | 137 | 2500 | 11.46 | 23 | 224 | 650 | 2200 |
| 48 | 3000 | 68 | 2500 | 11.5 | 23 | 224 | 650 | 2200 | |
| TEC -406 | 48 | 8000 | 207 | 1420 | 54 | 24 | 1054 | 2592 | 6000 |
| TEC -457 | 80 | 10000 | 142 | 1200 | 85 | 23.32 | 1684 | 4507 | 6500 |
| TEC -470 | 80 | 10000 | 142 | 1200 | 85 | 23.32 | 1684 | 4507 | 6500 |
FAQ
The load capacity of vertical travel wheels varies according to the model and is generally suitable for medium to heavy loads and is suitable for logistics and material handling applications.
These wheels perform best on flat, smooth surfaces. For use on uneven surfaces, it is recommended to modify or select a different wheel type to improve grip and stability.
