Our TEC Vertical Drive Wheel with Shock Absorption module to enable it to better cope with complex and harsh industrial environments. We are one of the largest mobile robot core component suppliers in China, with more than 20 years of production and R&D experience, providing reliable customized solutions.
Product Introduction

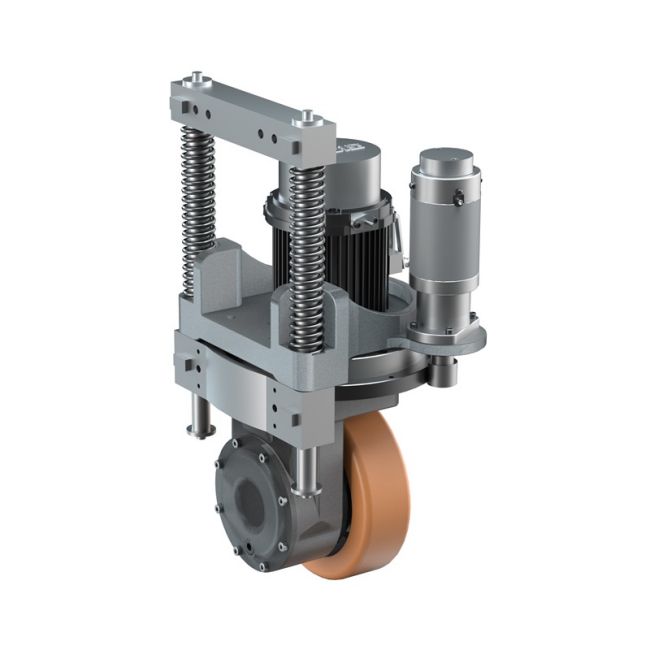

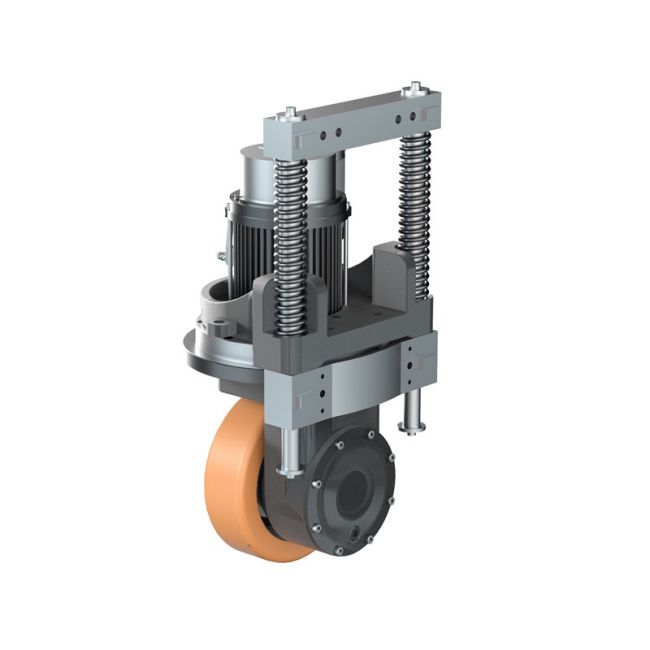

The vertical steering wheel with shock absorption integrates a shock absorption system on the basis of the standard steering wheel, which can effectively protect high-precision goods from vibration during transportation and ensure its safety. The shock absorption system can efficiently absorb vibration energy, reduce the impact force during operation, protect the mechanical structure of the equipment, and extend the service life.
1. Bevel gear transmission structure, compact structure, low noise, large output torque;
2. Vertical shock absorption drive wheel series (named by wheel diameter mm): 230, 250, 310 series application coverage.
3. Drive wheel load range: 1200kg-2500kg series;
4. 12V-96V input voltage range, vertical with steering/without steering;
5. Optional polyurethane wheel or rubber wheel structure;
6. Optional DC brush, AC asynchronous, permanent magnet servo motor, power range 400W-16KW;
7. Optional components: shock absorption spring, limit switch, original switch, incremental/absolute encoder, potentiometer and other components.
8. Customized series: explosion-proof drive wheel, low temperature drive wheel, high IP protection grade.
Product Details
· High-quality springs provide moderate elasticity and extend service life.
High-performance motors provide precise steering and motion control.
Six quality assurances
Product Specifications
series | Motor Type | power（W） | Voltage（V） | Current（A） | Speed（RPM） | Reduction ratio（I） | load（Kg） | IP Rating |
TEC-230P | Travel motor | Servo Motor | 2500 | 48 | 62 | 3000 | 30 | 1200 |
Steering motor | Servo Motor | 400 | 48 | 10.6 | 3000 | 50 | ||
TEC-250P | Travel motor | Servo/AC/DC motor | 1600/2500 | 24/48 | 35/63/100 | 2500 | 19 | 1800 |
Steering motor | Servo/AC/DC motor | 400/650 | 24/48 | 9.9/24/36 | 3000/3500 | 33.92/50 | ||
TEC-310P | Travel motor | Servo Motor | 3000 | 48 | 75 | 2500 | 23 | 2500 |
Steering motor | Servo Motor | 750 | 48 | 19.9 | 3000 | 50 |
FAQ
Differential drive wheels provide increased load capacity and stability, particularly suitable for long-term operation of large equipment. They ensure smooth operation under heavy loads or difficult terrain while improving overall maneuverability.
Suitable for AGV, industrial robots, conveyor systems, cleaning equipment and medical equipment.
Key benefits include effective vibration absorption, noise reduction, protection of mechanical components and extended equipment life.
