Jiangsu Yikong Intelligent Equipment Co., Ltd. and its wholly-owned subsidiary Shanghai Tongpu Electric Power Technology Co., Ltd. were jointly founded by a team of doctoral students from Tongji University with rich industry management experience in the field of "high-tech...

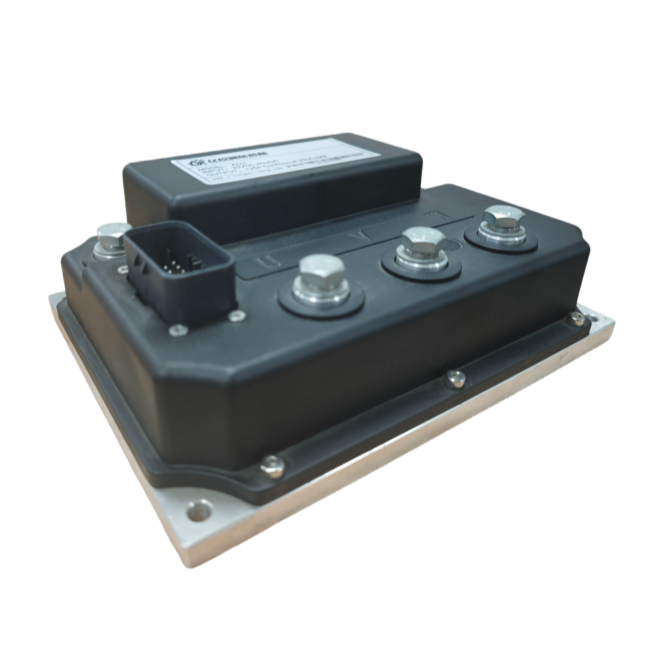

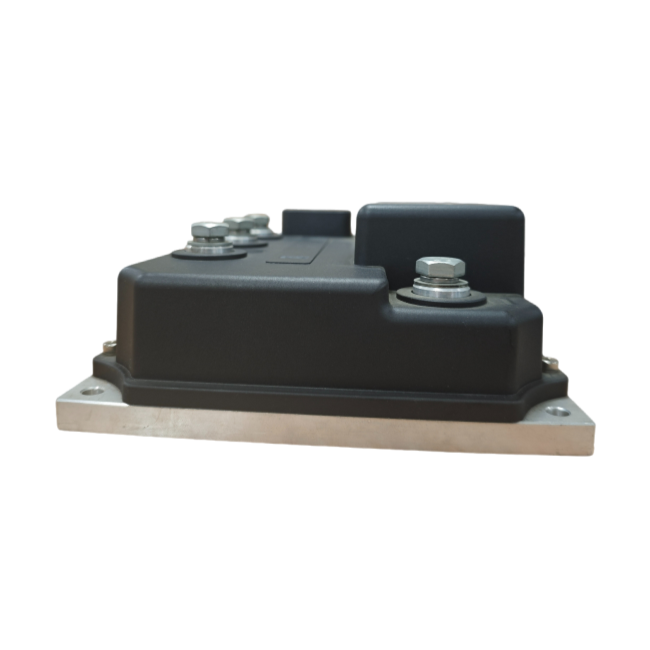

TEC high-performance AC Controller is designed for all types of industrial equipment and can provide excellent power control in an efficient and stable environment. Compatible with mainstream protocols such as CANopen and EtherCAT, they can seamlessly connect to AGV navigation and dispatching systems.
Product Introduction
Using advanced control technology, it effectively regulates the speed and torque of AC induction motors, especially suitable for industrial automation and HVAC systems. By adjusting voltage and frequency, this drive achieves precise motor control, ensuring stability and energy saving under various load conditions. Its modular design simplifies installation and maintenance and is compatible with a variety of AC motors.
1. Control mode: supports position, speed, and torque control modes, and accurately adapts to complex actions such as AGV handling, docking, and obstacle avoidance.
2. Communication protocol: compatible with mainstream protocols such as CANopen and EtherCAT, seamlessly connected to AGV navigation and scheduling systems.
3. Encoder adaptation: fully compatible with photoelectric, magnetic, and absolute encoders to meet high-precision positioning requirements.
4. Motor drive: adapted to 500W~20kW low-voltage servo motors, covering light load to industrial heavy load scenarios.
5. Two-in-one drive (drive + energy management), emergency alarm braking, battery life optimization; supports customized development of working conditions (such as explosion-proof, extreme temperature resistance, and impact resistance).

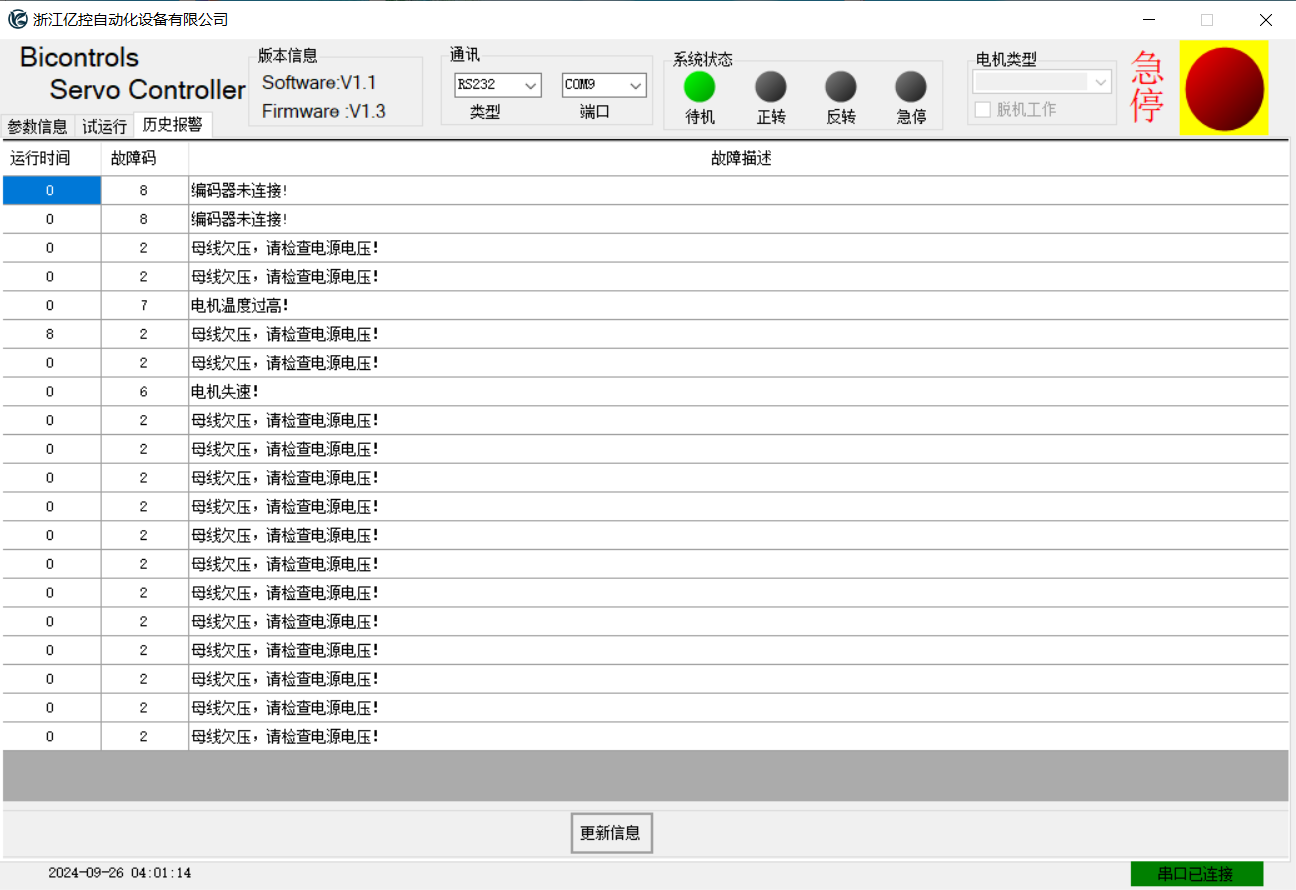

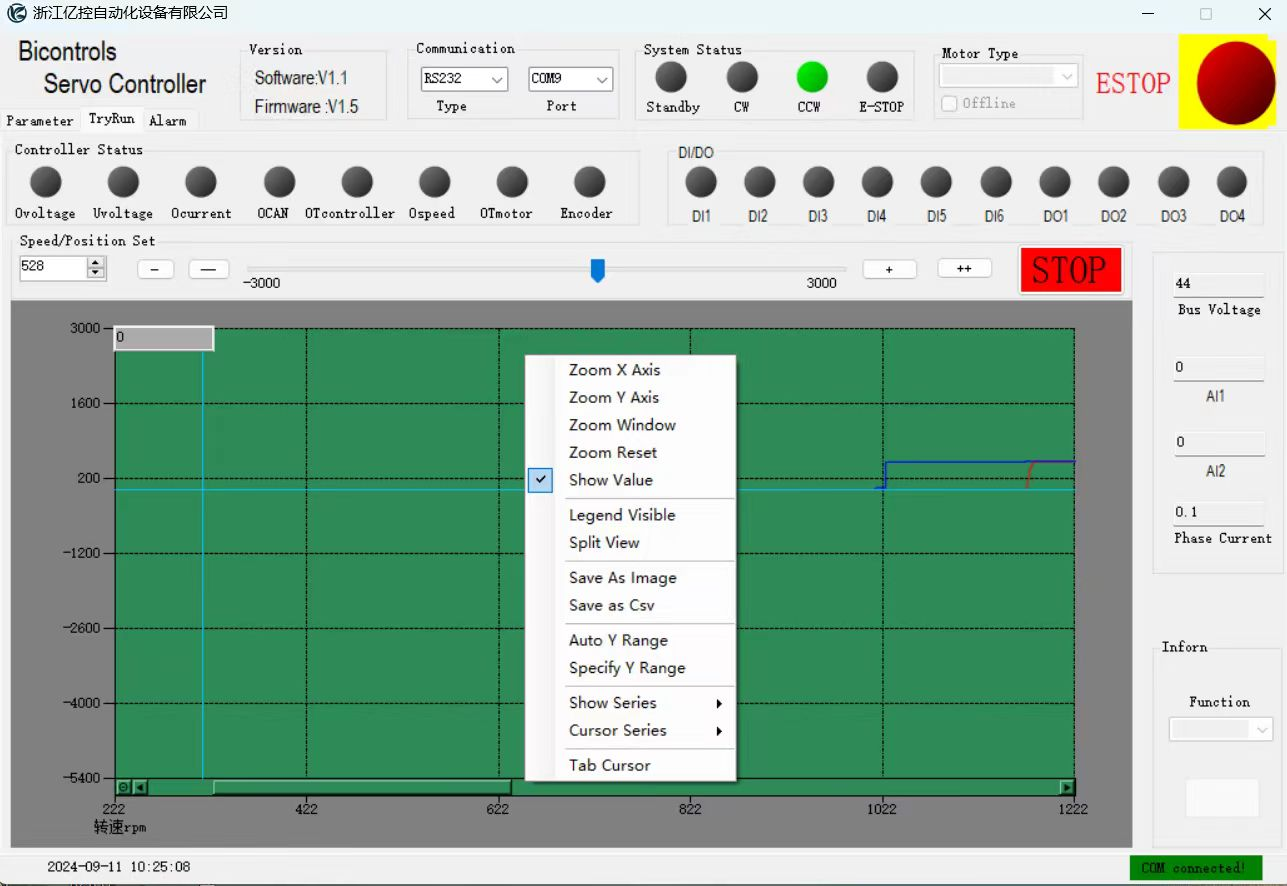

6. The supporting software interface is simple and clear, capable of displaying voltage, current, DI/DO status with 0.1-level accuracy, millisecond-level real-time curve tracking instructions and feedback; parameter step adjustment (±1/±10), alarm record loop storage, convenient and accurate debugging.
1. Port container AGV, steel plant casting transportation, suitable for 75kW high power and high temperature/dust resistance design.
2. Automobile production line material distribution, e-commerce sorting AMR, relying on ±0.1mm positioning and long endurance.
3. Agricultural traction AGV (wide voltage 48V~380V), chemical plant explosion-proof transportation.
Six quality assurances
Product parameters (specifications)
| Basic parameters | TEC-ACH-I-U | TEC-ACL-I-U | |
| Basic parameters | Voltage | DC 12-72V | |
| Rated current | 150A | 20A | |
| Motor Control | Control method | 1: Speed closed loop control | 1: Speed closed loop control |
| 2: Position closed loop control | |||
| Input and output interface | Analog input | 1 channel 0-10V analog | |
| Digital input | 5Digital input, low level effective | 6 digital inputs, low level valid | |
| Digital output | 3 open collector outputs | 4 open collector outputs | |
| 12V output | 1 12V power output, maximum current 200mA | ||
| Feedback | Encoder interface | 5V，Incremental differential input | |
| Communication interface | USB | USB connection to host computer software | |
| CAN | Standard CANopen protocol | ||
FAQ
Many AC drives meet international energy efficiency standards, such as IE2 or IE3 ratings, and are suitable for applications with high energy efficiency requirements.
Check connections and fittings regularly to ensure they are free of dust and corrosion, and update control software regularly to maintain optimal performance.
AC drives typically use PWM control and variable frequency drive technology to achieve precise motor regulation.
